134 Universal Needle
Needle system
134 U
Available needle sizes
NM 80, NM 90, NM 100
Special feature
- Round shank with 2 mm diameter
- For high-speed household and industrial sewing machines whose operating manual specifies use of needle system 134, 134 R, DPx5, 135x5, SY 1955, 135x7 or 797. These include, for example, the JUKI TL-2300 Sumato as well as many industrial sewing machines from Brother, Jack, JUKI, Pfaff, Texi, Zoje, etc.
- Please note that, due to its round shank, the 134 U is NOT compatible with standard household sewing machines that require a needle with a flat shank.
Tip
- Try to select your needle size to suit the material and sewing thread: Thicker materials and threads require a correspondingly thicker needle.
Suitable fabrics
- Cotton, brocade, chenille
- Corduroy, faux fur, felt, fleece
- Terry, gabardine
- Jeans, synthetic leather, leather (soft/thin)
- Linen, loden, calico, poplin
- Velvet, wool and wool blend
- And many more!
- Especially suitable for quilts, bags, clothing, home decor
Available needle sizes
- NM 80, NM 90, NM 100
Coating
Standard
Point shape
Slightly rounded point
SCHMETZ Industrial Line for the household sector
Discover the perfect needle for your high-speed household sewing machine! The 134 (R) needle system is a standard needle for industrial high-speed sewing machines and can also be used for certain high-speed models of household sewing machines. SCHMETZ has developed an optimized version of the needle for this application: The 134 Universal Needle (134 U).
The SCHMETZ 134 Universal Needle combines the precision of the 134 (R) industrial needle with the versatility of the Universal Needle 130/705 H for the household sector. Its specially developed geometry is perfectly tailored to the requirements of high-speed models in the medium speed range. It allows for better, more precise loop formation and, at the same time, offers stability that is perfectly tailored to high-speed models of household sewing machines – striking the ideal balance between household and industrial machine needle.
The result? High quality seams and maximum reliability for demanding sewing projects.
Please note that, due to its round shank, the 134 U is NOT compatible with standard household sewing machines that require a needle with a flat shank.
The SCHMETZ 134 U fits into all high-speed household and industrial sewing machines whose operating manual specifies use of needle system 134, 134 R, DPx5, 135x5, SY 1955, 135x7or 797. These include, for example, the JUKI TL-2300 Sumato as well as many industrial sewing machines from Brother, Jack, JUKI, Pfaff, Texi, Zoje, etc.
Before using a needle, always check whether the needle system is suitable for your machine according to the machine manufacturer.
Special features of the 134 Universal Needle in detail

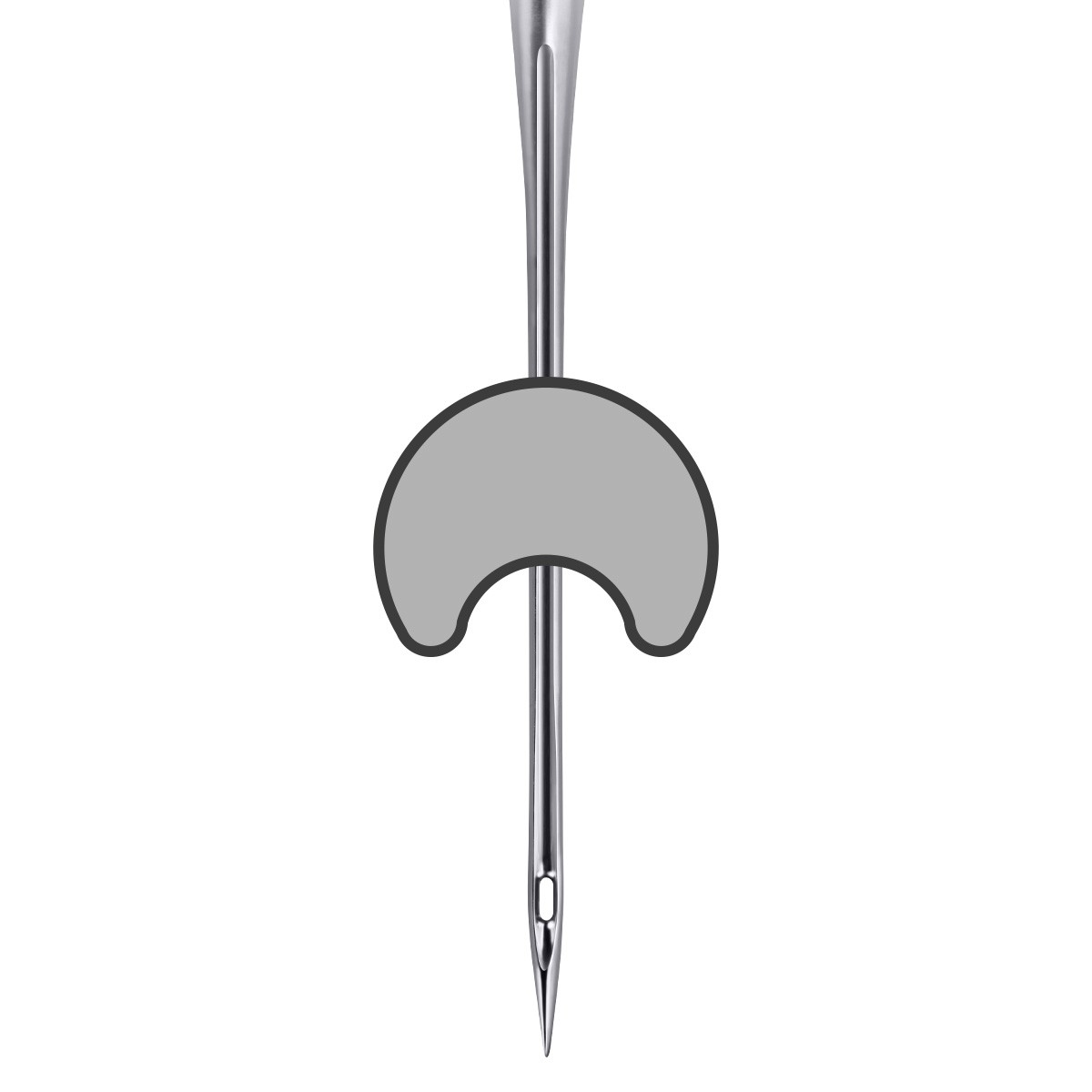

The needle has a round shank with a shank diameter of 2 mm.

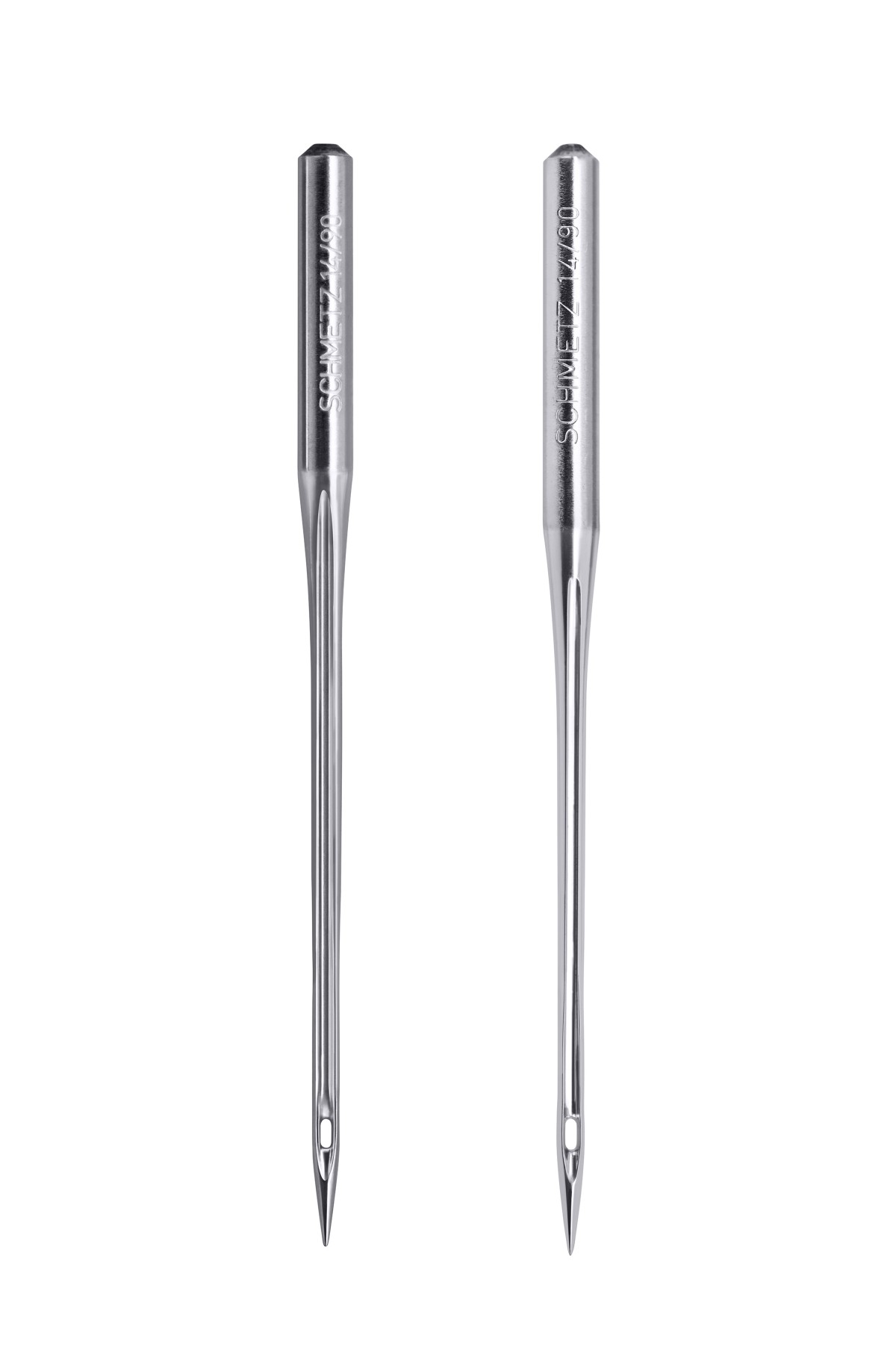

With a shank length of 11.5 mm, the shank is shorter than the shank of a standard 134 (R) industrial needle (13.5 mm long). This ensures that even thick materials can be sewn without problems, without the shank sinking into the material and leaving holes.
The optimized blade shape ensures high stability of the needle.
The thread groove is longer than on the standard 134 (R) industrial needle, which means less friction to the thread and, therefore, thread breakage is reduced – even in thicker materials.
The rounded edges of the thread groove also protect the sewing thread.
The smaller eye allows for more precise loop formation with thicker sewing threads and reduces skipped stitches, helping to guarantee optimum seam quality.
Point Shape

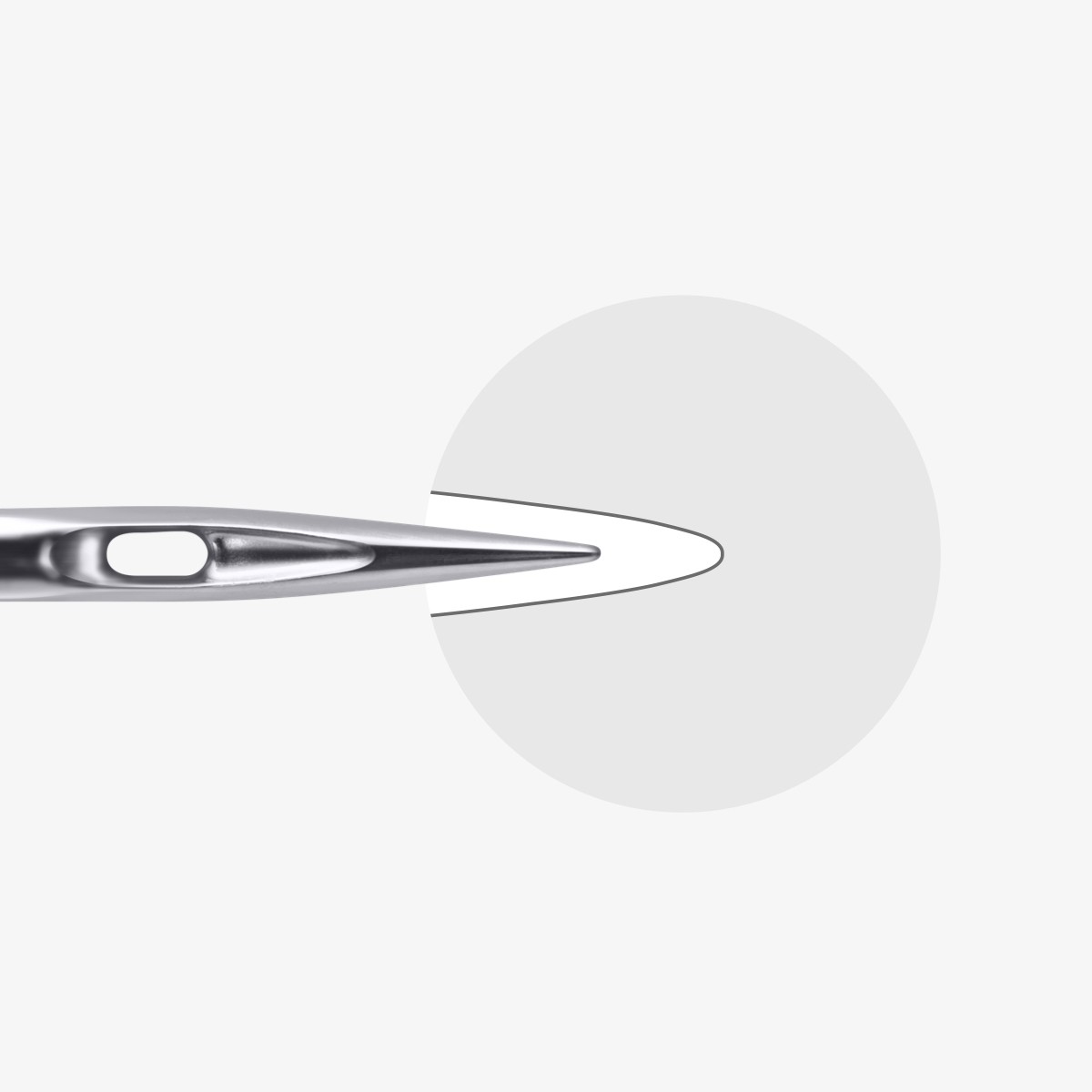

The 134 Universal Needle has a slightly rounded point. It is designed to penetrate materials gently and effortlessly without damaging them. This means that the 134 U can be used with countless common fabrics without any problems.
In addition, the slight rounding extends the service life of the point – compared to the acute standard R point common in industrial needles – as it reduces its susceptibility to wear and damage.
Application range
Due to its special geometry, the 134 Universal Needle can be used to sew thick fabrics, heavy materials and strong threads with ease: Bulky projects such as quilts and bags can be processed just as easily and flawlessly as hems on jeans.
With the right needle size, professional results can still be achieved in clothing made from a number of different fabrics with a consistent stitch quality.
For both amateur and commercial use, the 134 Universal Needle is the perfect choice for professional seams as well as fast and precise sewing.
 |  |  | |
| 134 Universal | 134 (R) | Universal | |
| 134 U | 134 (R) / DPx5 / 135x5 / SY 1955 | 130/705 H | |
| Available needle size | 80/12, 90/14, 100/16 | 55/6, 60/8, 65/9, 70/10, 75/11, 80/12, 85/13, 90/14, 100/16, 110/18, 120/19, 125/20, 130/21, 140/22, 150, 160/23, 180/24, 200/25 | 60/8, 65/9, 70/10, 75/11, 80/12, 90/14, 100/16, 110/18, 120/19, 130/21, also assorted |
| Point shape | Slightly rounded point | Acute point (R) | Slightly rounded point |
| Shank shape | Round shank with 2 mm diameter | Round shank with 2 mm diameter | Flat shank with 2.04 mm diameter |
| Shank length | 11.5 mm | 13.5 mm | 11.5 mm |
| Length to eye | 33.9 mm | 33.9 mm | 33.9 mm |
| Eye | Smaller, resulting in fewer skipped stitches because the loop formation is more precise with thicker threads. | Standard | Standard |
| Key features | Design has been optimized for high-speed household sewing machines, resulting in less needle and thread breakage and fewer skipped stitches | ||
| Suitable sewing machines | Certain high-speed household sewing machines (e.g. Juki TL-2300 Sumato) and industrial sewing machines. Please consult the user manual. | Certain high-speed household sewing machines and industrial sewing machines. Please consult the user manual. | Can be used on all conventional household sewing machines (e.g. Bernina, Pfaff, Elna, Brother, Juki, Janome, Singer, W6, etc.) |
| Application range | Universally applicable. Particularly suitable for clothing, bags, quilts and similar, even with thick seams | Universally applicable for woven fabrics as well as soft, thin natural and synthetic leather | Universally applicable |
